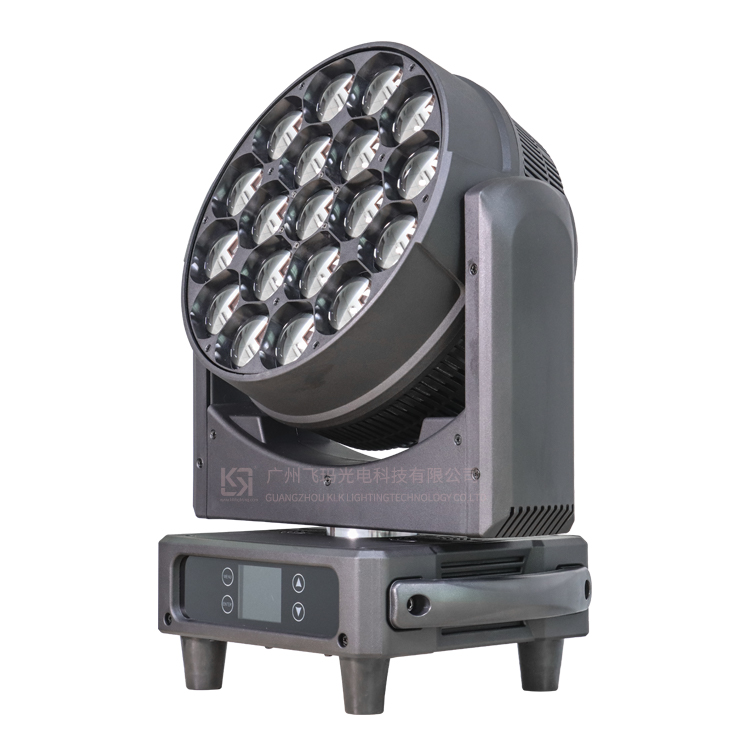

LED WASH 900 19PCSx40W LED ZOOM MOVING HEAD
Features
Light source: 19x40W RGBW LED
LED life expectancy: 20000 hours
With powerful beam and wash effects
Individual control of each LED rings
Outstanding color macro effect
Variable CTO: 2500K - 8000K
Electronic linear zoom system

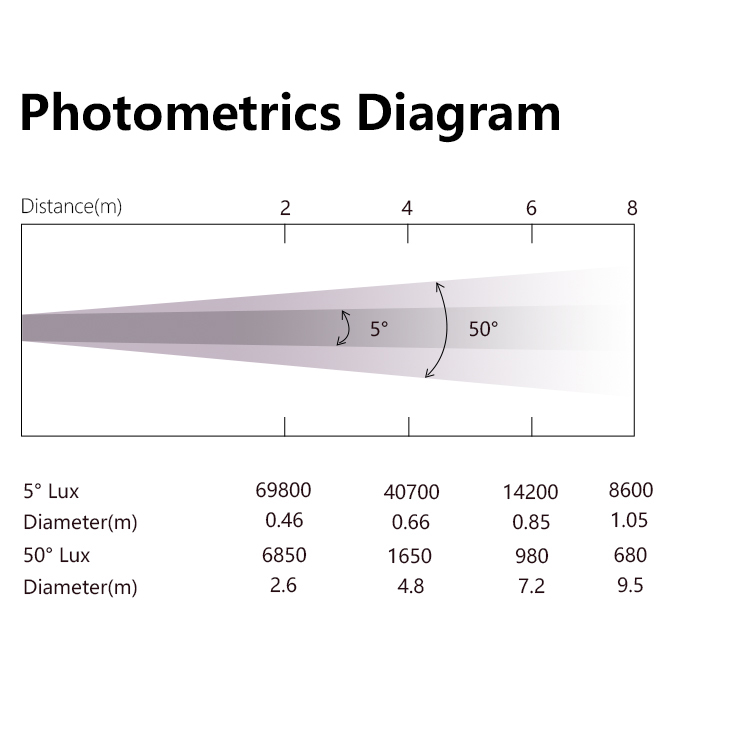

Zoom range: 5°~50°
Outstanding strobe effect with variable speed
0~100% smooth dimming
Maximum connected quantity:
3 sets (120V, 60Hz)
5 sets (230V, 50Hz)
Control and Program
Protocols: DMX512, Master slave, Sound Active, RDM
DMX Protocol modes: 6
Control channels: 10,15,21,25,37,37+
Pan/Tilt Resolution: 16 bit
Dimmer: 16 bit
Software upgrade: Update software through a DMA connection
PAN & TILT
Pan/Tilt movement: 540° / 270°
Correction: Automatic correction of X-axis/Y-axis position structure
Construction
Display: LED 2.4G color screen + 4 touch buttons selection menu
Data in/out: 3-pin and 5-pin XLR
Power In/Out: Power Connector in/out
Protection Rating:IP20
Automatic Pan/Tilt position correction
Electrical and Connectors
Power supply with electronic auto-ranging
Input voltage range: 100–240V~ 50/60Hz
Power consumption: 760 W

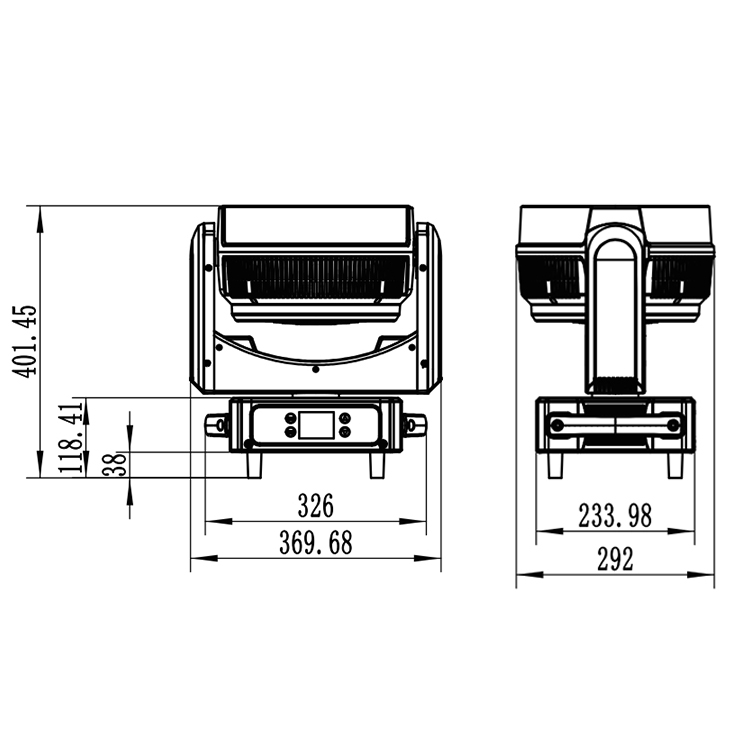

Box Dimensions:470x330x590mm
Flycase 2 in 1:750x440x700mm
Gross Weight:19KG
Gross weight:65KG(Dual loader Case)
Included Items
User Manual
Power Cable
2x Fast-locked clamps
